Our products and services are the best!
We design and manufacture endoscopes and borescopes. Endoscopes: 4x170mm, 4x320mm, 10x320mm. Made in USA.
We are A professional manufacturer for optical components, fiber optic components and Sapphire components. We make many types of optical lenses, prisms, windows, filters, mirrors and fiber optics for instrument, medical, laser and optical applications. We also provide design and engineering services.
We also develop and manufacture endoscopes, optical couplers, rod lenses, objectives, CTV lenses, optical filters, machine vision lenses, and industrial lenses. We have lasers and laser systems as well.
1) Narrow band pass interference filters, fluorescence system filters, high reflection filters, beam splitting filters, color splitting filters, IR sensor interference filters, UV mirrors, neutral density filters and special filters.
2) Sapphire wafers, sapphire windows, sapphire lenses, sapphire tubes, sapphire rods, sapphire balls, sapphire bearings, sapphire nozzles, and custom-made sapphire components as customer's specifications. Applications include optical, biomedical, communications, laser manufacturing, aerospace avionics, semiconductor, fiber optic and electronics.
In many cases, sapphire windows need to be smaller and more accurate, depending on the application requirements. We can make micro sapphire windows and Ultra-thin sapphire windows. The minimum diameter can be as small as 0.3 mm. The thinnest thickness can be as thin as 0.2mm.
All of these Micro Sapphire Windows have deep-polished surface, good flatness and parallelism. Optical coatings are avaliable upon request. It can be used as a front-end protection window for endoscopes, and the edges can be coated with solder layers to facilitate good sealing and durability after welding and assembly.
We can provide micro sapphire rods from Diameter 0.3 to 3.0mm. These rods have good polished round surface as well as general two plane high-precision polished surfaces. Super Precision machining technology ensures that these rods have no chips.
We provide sapphire balls with a diameter from 2mm to 10mm and a dimensional accuracy of up to +/-0.001mm.
Synthetic sapphire monocrstal is widely used because of its high toughness and strength. At the same time, it also has good optical properties. Therefore, in addition to traditional optical applications, such as optical windows, lenses, it can also be made into a variety of sapphire balls, sapphire half-balls / saphire hemisphere, sapphire bearings, etc.
3) Spherical Lenses
Plano Concave Lenses; Plano Convex Lenses; Biconcave Lenses; Biconvex Lenses; Mieniscus Lenses.
Material:Optical Glass、Quartz、BK7、CaF2、Sapphire、MgO、ZnS、Ge、Si、BaF2 Paremeter: Diameter Tolerance: -0.00/-0.15 mm; Thickness Tolerance: +/-0.10 mm; Focus Length Tolerance: +/-1%; Centration: <3arc minutes; Surface Quality: 20-10; Surface Figure: λ/4@633nm; Clear Aperture: Central 85% of diameter; Bevel: 0.25mm x 45° .
4) Cylindrical Lenses
Positive Cylindrical Lenses; Negative Cylindrical Lenses.
Material:Optical Glass、Quartz、BK7、CaF2.
Parameter: Diameter Tolerance: -0.00/-0.15mm; Focus Length Tolerance: +/-2%mm;
Centration: 3 arc minutes; Surface Quality: 10-5; Radius Tolerance: <±0.5%; Surface
Figure: λ/8@633nm; Clear Aperture: Central 85% of Diameter.
5) Aspherical Lenes; Optical Windows (Square Windows , Round Windows); Mirrors (Square Mirrors , Round Mirrors ); IR Lenses
Material:Optical Glass、Quartz、BK7、CaF2、Sapphire、MgO、ZnS、Ge、Si、BaF2、MgF2.
Parameter for Aspherical Lenes: Foci Tolerance: +/-1% mm; Length Tolerance: +/-0.1 mm; Surface Quality: 20-10; Centration: 3 arc minutes; Clear Aperture:Central 90% of
Diameter; Aperture: λ/2.
6) Prisms Right Angle Prisms; Penta Prisms; Roof Prisms Material:Optical Glass、Quartz、BK7、CaF2 Parameter: Diameter Tolerance: +/-0.15 mm; Angle Tolerance: +/-3arc minutes; Surface Figure: λ/2 @632.8nm; Surface Quality: 20-10; Clear Aperture: Central 90% of diameter
7) Optical Windows: Diameter Tolerance: -0.00/-0.15 mm; Thickness
Tolerance: +/-0.10 mm; Parallelism: <3 arc minutes; Surface Quality: 20-10; Surface
Figure: λ/4@633nm; Clear Aperture: Central 85% of Diameter; Bevel: 0.25mm x 45° .
8) Mirrors: Design Wavelength: 480, 546.1, 643.8 nm; Diameter Tolerance:
-0.00/-0.15 mm; Thickness Tolerance: +/-0.10 mm; Focus Length Tolerance: +/-1%;
Centration: <3 arc minutes ; Surface Quality: 20-10; Surface Figure: λ/4@633nm; Clear
Aperture: Central 85% of Diameter.
9) Fiber optic components: we offers a wide variety of fiber collimation and coupling components, such as fiber optical isolators, fiber couplers, WDMs, circulators, switches, ferrules, MT connectors and V-grooves.
CVD ZnSe focal lenses and CO2 laser focal lenses (USA). High Quality, Low Price.
CVD ZnSe Output couplers.

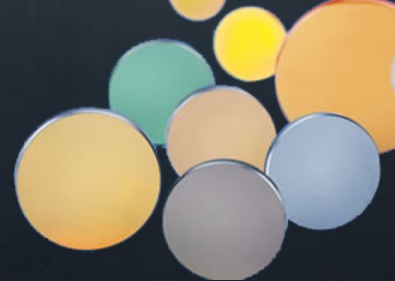

Silicon CO2 laser reflectors.
Germanium windows.
Replacement optics for CO2 laser engravers.
CO2 laser tubes, RF CO2 laser tubes.
Affordable CO2 Laser Engravers (40W, 80W) and laser power meters.
Laser Grade CVD ZnSe lenses (USA): Plano-Convex, Meniscus, Plano-Plano, Plano-Concave. Optimized to perform at 10.6µm wavelength.
Optics (CVD Zinc Selenide) for laser system manufacturers: Universal, Epilog, GCC Laser Pro Engravers, Vytek, Trotec, Kern, Ferba, Camtech, Emission Technologies, Pinnacle, LST Lasers, Synrad, Gravograph, Jamieson Laser.
Amada, Bystronic, Cincinnati, LVD/Strippit, Mazak, Mitsubishi, Prima, Salvagnini, Trumpf and others.
ZnSe is used as an infrared optical material with a remarkably wide transmission wavelength range (0.45 µm to 21.5 µm). The refractive index is about 2.67 at 550 nm (green), and about 2.40 at 10.6 µm (LWIR). Similar to zinc sulfide, ZnSe is produced as microcrystalline sheets by synthesis from hydrogen selenide gas and zinc vapour. ZnSe is a preferred material for lenses, windows, output couplers and beam expanders for its low absorptivity at infrared wavelengths and its visible transmission. For high-power applications, it's critical that the material bulk absorption and internal defect structure be carefully controlled, that minimum-damage polishing technology be employed, and the highest quality optical thin-film coatings are used.
UV DPSS lasers, picosecond lasers, femtosecond lasers, fiber lasers, and diode lasers.
532nm DPSS Laser, CW, 20mW, 400mW, M^2< 1.2, SLM, Coherent length > 50m.
405nm Diode Laser, CW, 20mW, 200mW, M^2<1.2.
660nm Diode Laser, CW, 10mW, 80mW, M^2<1.2.
1064nm Picosecond Laser, SESAM, 300mW, 10-20ps, 80MHz, M^2<1.2.
1064 nm Fiber Laser Marking System.
We develop diode pumped solid state laser, diode laser, fiber laser, Raman Spectrometer for Raman Spectroscopy. Laser for Raman Spectroscopy, 1064nm, 785nm, 639nm, 532nm.
BTFC-D series fiber coupled laser is specially designed for Raman spectroscopy, wavelength available from 375nm, 405, 445, 488, 514.5, 633, 639, 660, 690, 730, 785, 808, 830, 852, 975, to 980 nm. The spectral linewidth is optional from 0.2nm, 0.1 nm and 0.06 nm according to customers' actual requirements. Housed in ultra compact package, it is the perfect choice for Raman spectrometer, chemical and biological research, environmental science, jewelry appraisal, forensic appraisal, food/drug safety inspection, geological exploration, systems design and integration.
1
Model BTFC-D-785 (Spectrum Stabilized for Raman spectroscopy)Central wavelength (nm) 785±0.5Spectral line width (nm) 0.1Operating mode CWFiber core diameter 100µm, 0.22 NAFiber connector SMA905Output power after fiber (mW) >350Power stability (rms, over 4 hours) <1%Central wavelength stability (rms, over 2 hours) (pm) <10Noise of amplitude (rms, 1~20MHz) <0.5%
2
Model BTFC-D-639 (Spectrum Stabilized for Raman spectroscopy)Central wavelength (nm) 639±0.5Spectral line width (nm) 0.1 Operating mode CWFiber core diameter 100µm, 0.22 NAFiber connector SMA905Output power after fiber (mW) >100Power stability (rms, over 4 hours) <1%Central wavelength stability (rms, over 2 hours) (pm) <10Noise of amplitude (rms, 1~20MHz) <1%
3
Model BTMGL-DS-532Wavelength (nm) 532±1Operating mode CWOutput power before fiber (mW) >100Power stability (rms, over 4 hours) <1%Transverse mode TEM00 M2 factor <1.2Beam diameter at the aperture( 1/e2,mm) 0.7±0.05Beam divergence, full angle (mrad) <1.5
4
BTMLL-III-1064 / 1500mWWavelength (nm) 1064±1Operating mode CWOutput power (mW) >200Power stability (rms, over 4 hours) <1%Transverse mode TEM00 Warm-up time (minutes) <10M2 factor <1. 2Noise of amplitude(rms,20Hz~20MHz) <1%
5
The portable Raman spectrometer BTRamanSys-532Laser 100mW, 1%.
